SHe-BK Flat Panel Aluminum Solar Energy Water Heater Easy to Install Double Circulation Closed System

FOB Reference Price:Get Latest Price
US $85-125 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
sanghui
Model Number:
SHe-BK
Type:
Flat Panel
Application:
Solar Thermal
Pipe Material:
Copper
Product name:
Flat Panel Aluminum Solar Energy Water Heater
Pipe Material::
Copper
Head Tube::
Copper , 22X0.6mmx3
Riser Tube::
Copper, 8X0.5mmx6
Absorber Coating::
Black Chrome
Glass Cover::
Low iron tempered glass
Frame::
Aluminum Alloy Plate
Back sheet:
galvanized steel
Dimension(mm):
2000*800*80
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Wooden plate and carton container
Port
Shenzhen/Hongkong/Guangzhou
Video Description

Flat Panel Aluminum Solar Energy Water Heater

Product Description

A

Solution-D_

B

C

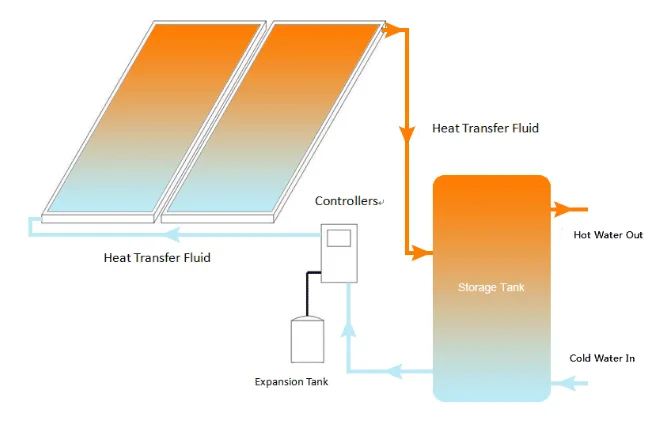

(1) Active solar water heating systems:

  The active solar water heating systems have circulating pumps and controls, and usually the water storage tank can be installed in garage or on the ground.Active.png

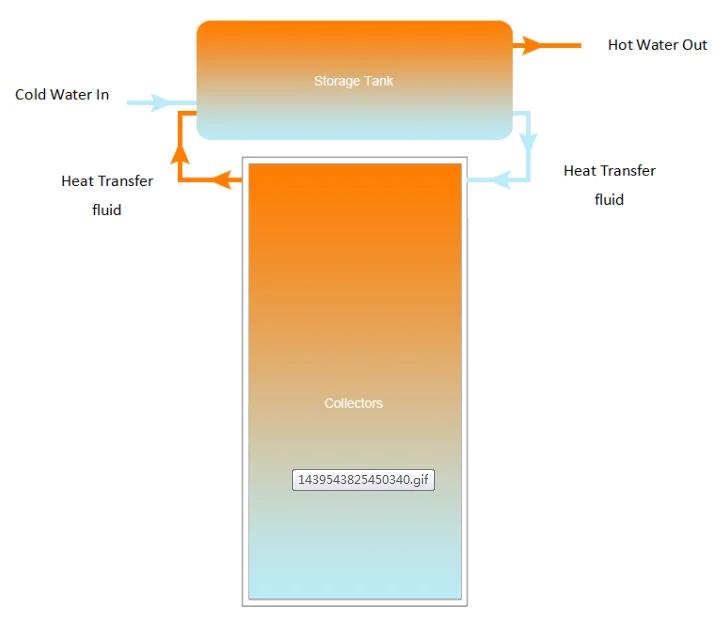

(2) Passive solar water heating systems:

 The passive solar water heating systems have two basic types:

     The integral collector-storage passive systems and thermosyphon systems:

For integral collector-storage passive systems, these work best in areas where temperatures rarely fall below freezing.

     For thermosyphon systems, the collectors and water storage tank must be installed both on the roof. These systems are reliable, but contractors must pay careful attention to the roof design because of the heavy storage tank. passive.png



SOLUTIONS

A solar water heating system can offset up to 75% of water heating energy costs. A solar water heater can cut a business' water heating costs by 50 to 85 percent, while demonstrating your commitment to a cleaner environment.

RESIDENTIAL---Resort/VillaSolution-E_.png

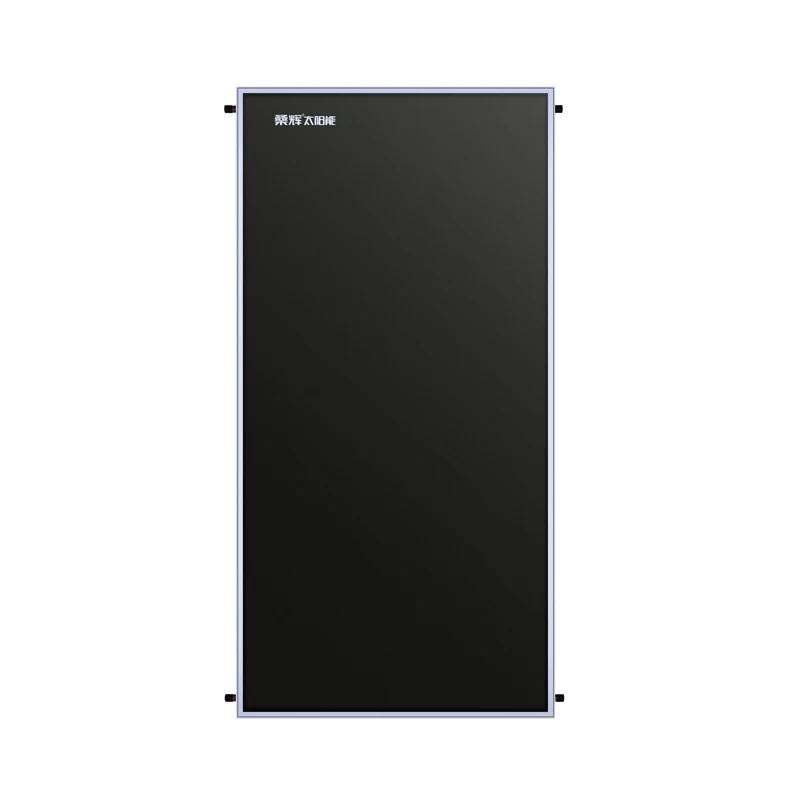

Product Picture

5545-800x800

BC Solar Collector.jpg

Specification:

sizedimensions(mm)2000*800*80
absorber coating0.4mm Black Chrome
main parameterweight28kg
aperture area of collector1.54m2
working pressure0.6MPa
collector portformH
materialTP2
riser Tube(mm)Φ8*0.5-6-strip
head Tube(mm)Φ22*0.6-3-strip
manufacturing engineeringbraze
reception of heatbase materialaluminium
thickness0.4mm
coatingabsorber CoatingBlack Chrome
heat absorption area1960mmx960mm
thickness0.4mm
absorptivityα=95%±2%
emissivityε=5%±2%
bonding technologyOmage bonding
manufacturer's standardGB/T 6424-2007
plate core volume1.3L
suggestion work flow160L/H
stagnation point temperature156 degrees Celsius
glassformlow iron, fabric, toughened glass
ironcontent≤0.01%
light Transmission≥91.6%
thickness3.2mm
insulating layerformGlass Fiber
back insulationthickness:40 mm,density:40kg/m3
side of the insulationthickness:45 mm,density:40kg/m3
covercoverThe whole board hydraulic molding
materialSilver alloy aluminum plate type
thickness0.8mm
transport packagepackageWooden plate and carton container
dmensions(mm)2010*900*85
