SHw-AO02 China Supply Thermosiphon Pressurized Flat Panel Solar Water Heater Anodic Oxidation 100L/120L/150L tank

FOB Reference Price:Get Latest Price
US $80-485 / Pieces | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Sanghui
Model Number:
SHw-AO02
Type:
Flat Panel
Application:
Solar Thermal
Pipe Material:
Copper
Product name:
Flat Panel solar water heater
Pipe Material::
Copper
Head Tube::
Copper , 22X0.6mmx3
Riser Tube::
Copper, 8X0.5mmx6
Absorber Coating::
Anodic Oxidation
Glass Cover::
Low iron tempered glass
Frame::
Aluminum Alloy Plate
Back sheet:
galvanized steel
Dimension(mm):
2000*1000*80
Equipment:
Plate
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Wooden plate and carton container
Port
Shenzhen/Hongkong/Guangzhou

SHw-AO02 China Supply Thermosiphon Pressurized Flat Panel Solar Water Heater Anodic Oxidation 100L/120L/150L tank

ADSC_5832B3CSOLUTIONS

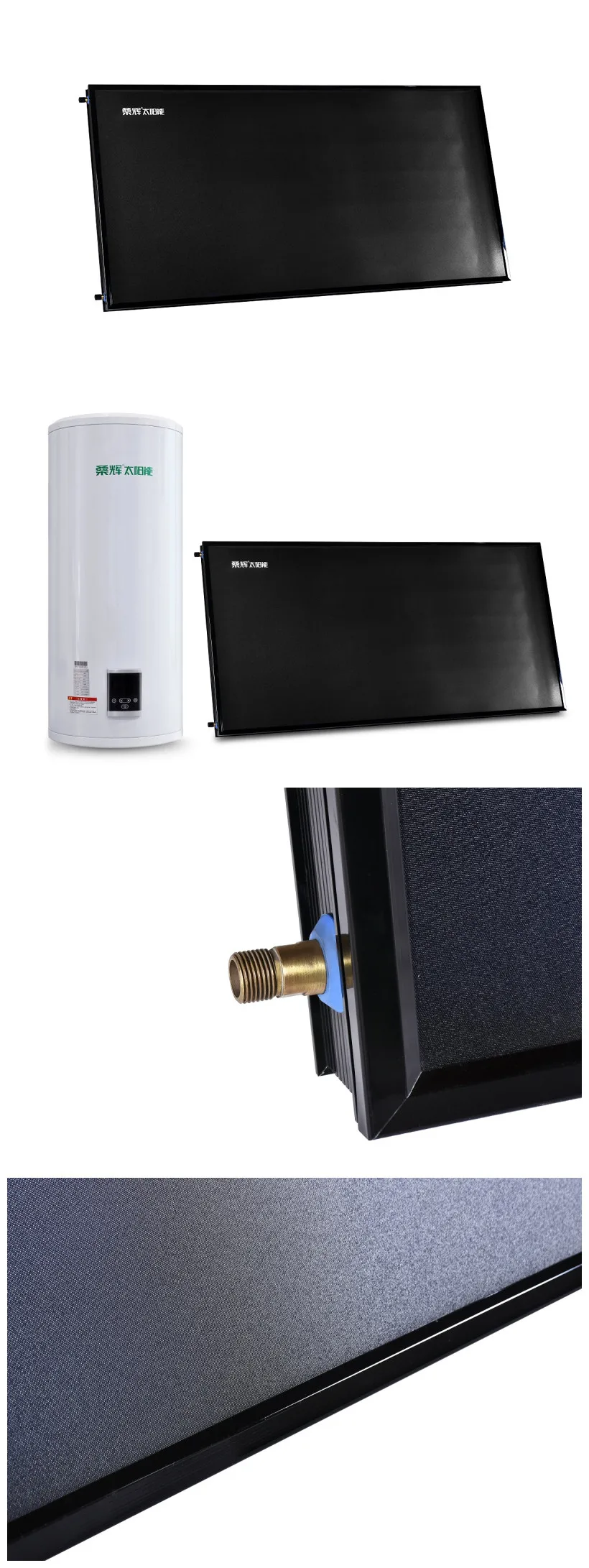

Product Description



Specification:

EquipmentPlate
sizedimensions(mm)2000*1000*80
absorber coating0.4mm Anodic Oxidation
main parameterweight28kg
aperture area of collector1.54m2
working pressure0.6MPa
collector portformH
materialTP2
riser Tube(mm)Φ8*0.5-6-strip
head Tube(mm)Φ22*0.6-3-strip
manufacturing engineeringbraze
reception of heatbase materialaluminium
thickness0.4mm
coatingabsorber CoatingAnodic Oxidation
heat absorption area1960mmx960mm
thickness0.4mm
absorptivityα=95%±2%
emissivityε=5%±2%
bonding technologyLaser Bonding
manufacturer's standardGB/T 6424-2007
plate core volume1.8L
suggestion work flow160L/H
stagnation point temperature156 degrees Celsius
glassformlow iron, fabric, toughened glass
ironcontent≤0.01%
light Transmission≥91.6%
thickness3.2mm
insulating layerformGlass Fiber
back insulationthickness:40 mm,density:40kg/m3
side of the insulationthickness:45 mm,density:40kg/m3
covercoverThe whole board hydraulic molding
materialSilver alloy aluminum plate type
thickness0.8mm
transport packagepackageWooden plate and carton container
dmensions(mm)2010*900*85




Packaging & Shipping

 Wooden plate and carton container
